GENERAL POWER RELAY
SFK 시리즈 일반 전력 릴레이

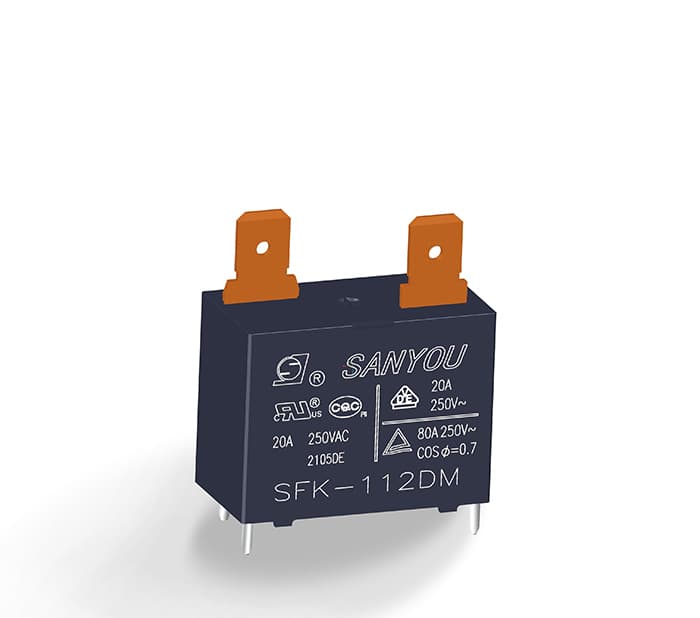

SFK series--General power relay
Miniature relay with high switching capability (25A VDE Certified) especialy suitable for motor and compressor control Both quick connect and PCB terminal types available especiallysuitable for Motor and compressor control Satisfy IEC60335-1 product is available Satisfy IEC60079-15 product is available
SPECIFICATIONS
제품 사양
- Contact Material
- Silver Alloy
- Contact Resistance
- 100mΩ Max.（1A 6VDC）
- Pull-in Time
- 20msec. Max. （without diode）
- Release time
- 10msec. Max. （without diode）
- Insulation Resistance
- 1,000MΩ Min.(DC500V)
- Medium withstand voltage
- Between contact and contact: AC1,000V，50/60Hz 1min.
- Anti-vibration
- durable · 10~55Hz，Double amplitude 1.5 mm
- Malfunction
- 10~55Hz，Double amplitude 1.5 mm
- Impact resistance
- durable · 100G Min.
- Malfunction
- 10G Min.
- Life
- Mechanical life （7,200 times per hour ，at room temperature） · 10,000,000 times
- Electrical life（360 times per hour ，at room temperature）
- 100,000 times
- Ambient temperature
- -40℃~+85℃（Non-condensing）
- Weight
- about 22.0g
