HIGH VOLTAGE DC RELAY

고전압 DC 릴레이

모델명과 핵심 사양을 비교하고, 제품 상세에서 적용에 필요한 조건과 문의 경로를 확인하세요.

검색 결과 52개 · 3페이지 중 1페이지

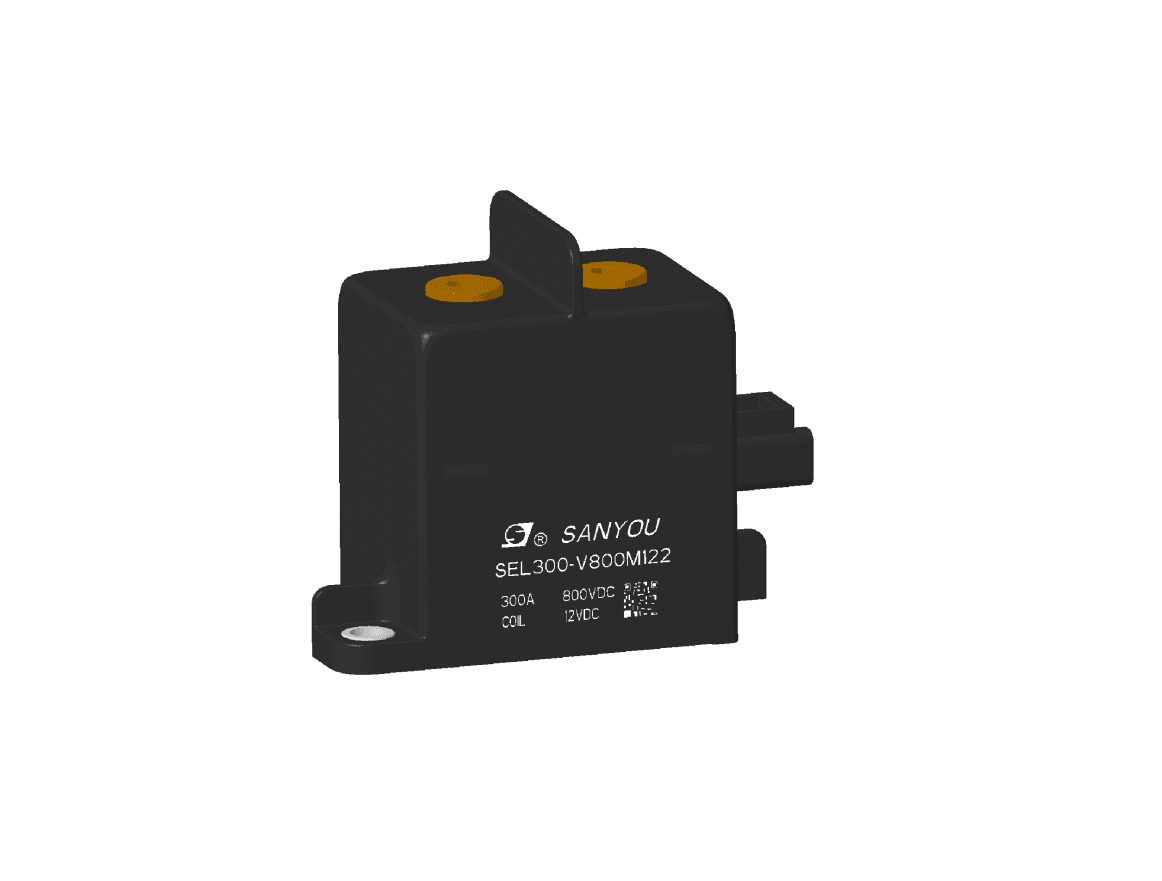

SEL300 series 공식 제품 이미지

고전압 DC 릴레이

SEL300 시리즈 고전압 DC 릴레이

SEL300 series

Contact arrangement 1 form A Rated voltage 1000V Rated current 300A Max.switch voltage 1000V Min.recommended contact load 1A,12VDC Max.Breaking current 2000A,(800VDC,1cycle) Contact resistance ≤0.5mΩ（20A） Contact resistance ≤0.3mΩ（300A） Operate/release time max. 30ms/10ms Initial dielectric strength between opencontacts：3000VAC 1min 1mA between contact and coil：3000VAC 1min 1mA insulation resistance between opencontacts：≥1000MΩ(1000VDC) between contact and coil：≥1000MΩ(1000VDC) Shock resistance Functional Closed state:490m/s(50G) Disconnectedstate:98m/s(10G) Destructive 490m/s2（50G） Vibration resistance (functional) 10Hz to 500Hz 49m/s2（5G） Ambienttemperature -40℃ to +85℃ Ambient humidity 5% to 85% RH Terminaltype Connector(coil)and screw(load) Weight Approx.340g External dimension V:86.05x42.5x74.5 H:83.8x74x43 Packaging unit 36pCs
Contact arrangement · 1 form A · Rated voltage · 1000V · Rated current · 300A · Max.switch voltage · 1000V · Min.recommended contact load · 1A,12VDC · Max.Breaking current · 2000A,(800VDC,1cycle) · Contact resistance · ≤0.5mΩ（20A） · Contact resistance · ≤0.3mΩ（300A） · Operate/release time max. · 30ms/10ms · Initial dielectric strength · between opencontacts：3000VAC 1min 1mA · between contact and coil：3000VAC 1min 1mA · insulation resistance · between opencontacts：≥1000MΩ(1000VDC) · between contact and coil：≥1000MΩ(1000VDC) · Shock resistance · Functional · Closed state:490m/s(50G) Disconnectedstate:98m/s(10G) · Destructive · 490m/s2（50G） · Vibration resistance (functional) · 10Hz to 500Hz 49m/s2（5G） · Ambienttemperature · -40℃ to +85℃ · Ambient humidity · 5% to 85% RH · Terminaltype · Connector(coil)and screw(load) · Weight · Approx.340g · External dimension · V:86.05x42.5x74.5 H:83.8x74x43 · Packaging unit · 36pCs
Contact arrangement
1 form A
Rated voltage
1000V
상세 사양 보기
