GENERAL POWER RELAY
SLA-G 시리즈 일반 전력 릴레이

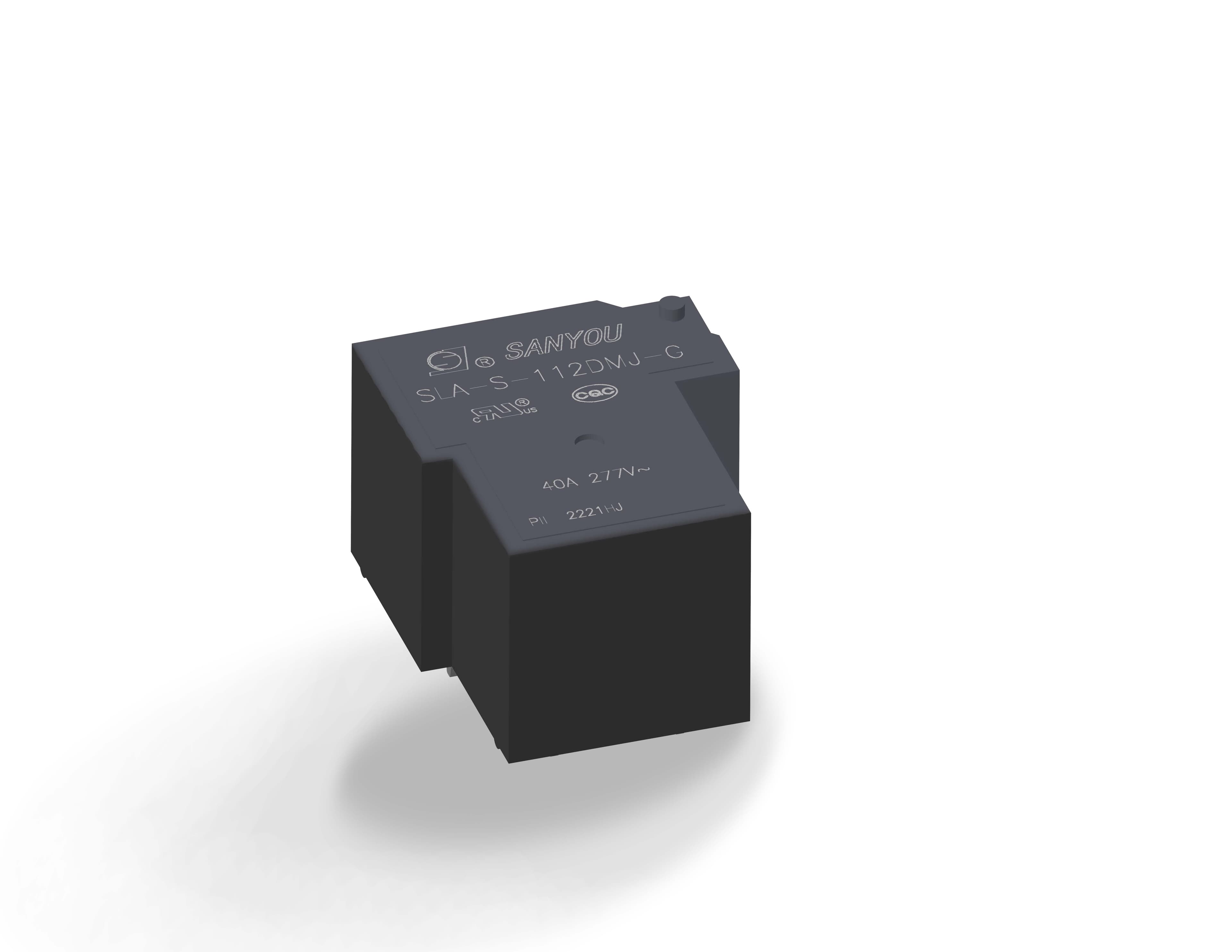

SLA-G series--General Power Relay
Miniature relay with high switching capability : 40A. Contact form : Form A or 1Form C. Special type of 4000VAC dielectric strength and 6000V surge voltage (1.2/50uS) between coil and contact available Sealed type. Patent Number: ZL 2008 20050972.1 Satisfy IEC60335-1 product is available. Satisfy IEC60079-15 product is available.
SPECIFICATIONS
제품 사양
- Contact Material
- Silver Alloy
- Contact Resistance
- 50mΩ Max.（1A 6VDC）
- Pull-in Time
- 15msec. Max. （without diode）
- Release Time
- 10msec. Max. （without diode）
- Insulation resistance
- 1,000MΩ Min.(DC500V)
- Medium withstand voltage
- Between contact and contact： · AC1,500V，50/60Hz 1min.
- Between contact and coil：
- AC2,500V，50/60Hz 1min.（4kV available）
- Anti-vibration
- durable · 10~55Hz， Double amplitude1.5 mm
- Malfunction
- 10~55Hz，Double amplitude 1.5 mm
- Impact resistance
- durable · 100G Min.
- Malfunction
- 10G Min.
- Life
- Mechanical life（7,200 times per hour ，at room temperature） · 10,000,000 times
- Electrical life（360 times per hour ，at room temperature）
- 30,000 times
- Ambient temperature
- -40℃~+70℃（Non-condensing）
- Weight
- Sealed type：about24.0g
