GENERAL POWER RELAY
SRB 시리즈 일반 전력 릴레이

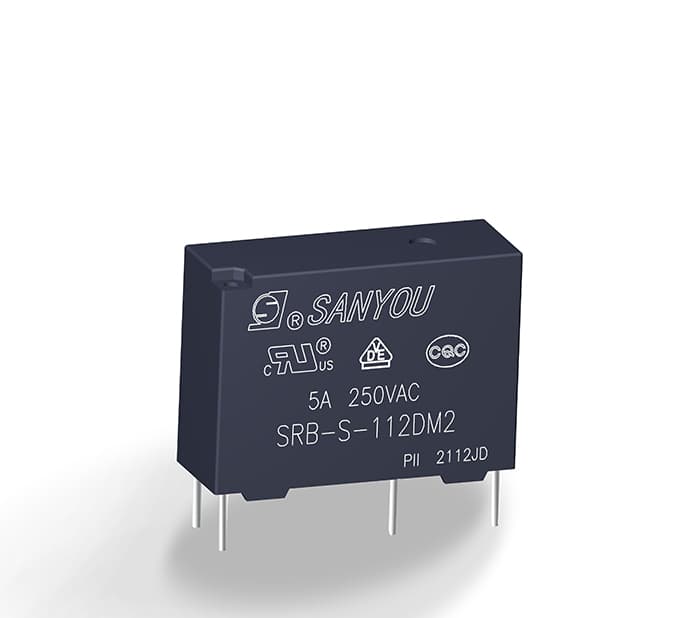

SRB series--General Power Relay
Small size (20.5x7x15.1 mm) for high density PCB mounting. 5A contact switching capability. High breakdown voltage: 4000V (between coil and contact). Satisfy IEC60335-1 product is available. Satisfy 1EC60079-15 product is available.
SPECIFICATIONS
제품 사양
- Contact Material
- Silver Alloy
- Contact Resistance
- 100mΩ Max.（1A 6VDC）
- Pull-in Time
- 10msec. Max. （without diode）
- Release Time
- 5msec. Max. （without diode）
- Insulation Resistance
- 1,000MΩ Min.(DC500V)
- Medium withstand voltage
- Between contact and contact：AC750V, 50/60Hz 1min.
- Anti-vibration
- durable · 10~55Hz，Double amplitude1.5 mm
- Malfunction
- 10~55Hz，Double amplitude1.5 mm
- Impact resistance
- durable · 100G Min.
- Malfunction
- 10G Min.
- Life
- Mechanical life（10,800 times per hour，at room temperature） · 10,000,000 times
- Electrical life（360 times per hour ，at room temperature）
- 100,000 times
- Ambient temperature
- -40℃~+105℃（Non-condensing）
- Weight
- about 3.9g
