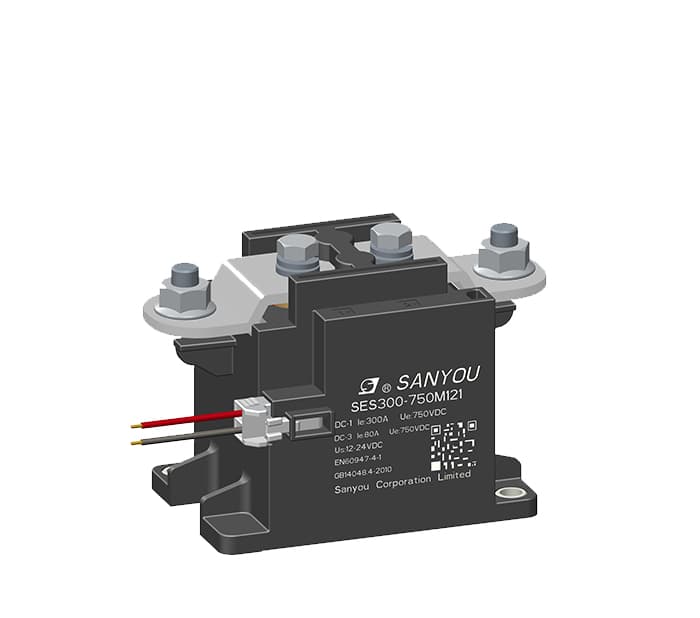

High voltage dc relay SES300 series
영문 · PDF · 599 KB
HIGH VOLTAGE DC RELAY
SES300 시리즈 고전압 DC 릴레이
SES300 series
Rated 300A contact switching capacity Meet the requirements for response to abnormal working conditions, capable of switching 10 times of overcurrent Ceramic brazing and sealing technology, no arc leakage, no fire, no explosion Adopt ceramic brazed sealing structure Load wiring has polarity requirement, coil drive has no polarity requirement Environmentally friendly products, fully compliant with RoHS requirements
SPECIFICATIONS
제품 사양
- Project
- Description
- Mechanical Durability
- 2×105 times
- Insulation Resistance
- 1000MΩ(500VDC)
- Medium withstand voltage
- Between contact · 3000VAC 1min 10mA
- Contacts and coils
- 4000VAC 1min 10mA
- Action time (under rated voltage)
- ≤50ms
- Release time (under rated voltage)
- ≤30ms
- Impulse
- Stability · 98m/s2（20G）
- Strength
- 490m/s2（50G）
- Vibration
- 10Hz~500Hz 49m/s2（5G）
- Working Temperature
- -40℃~85℃
- Working Humidity
- 5%~95% RH
- Weight
- 744g
- Length × width × height (mm)
- 113.5×65×75.5
