High voltage dc relay SET40 series
영문 · PDF · 378 KB
HIGH VOLTAGE DC RELAY
SET40 시리즈 고전압 DC 릴레이

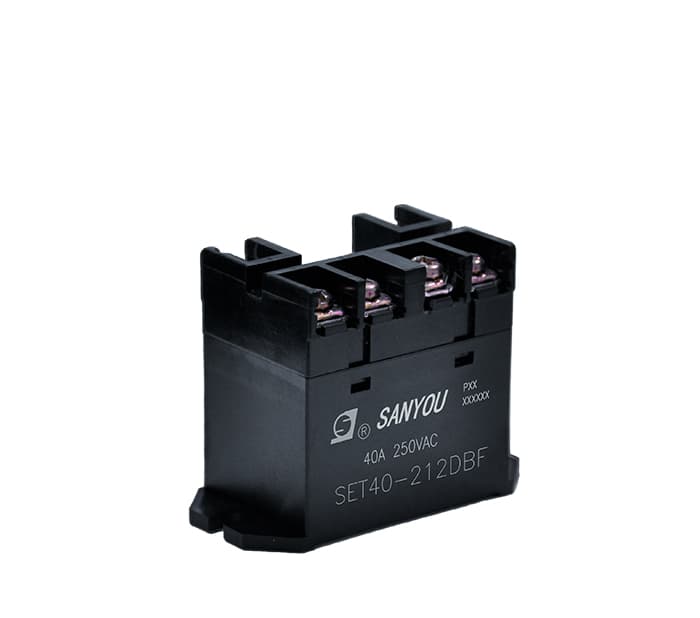

SET40 series
40A contact switching capability Dielectric withstand voltage between contact and coil 4KV Strong load capacity With two sets of normally open contacts Safety design with a contact interval of 3.0mm Environmentally friendly products (compliance with RoHS)
SPECIFICATIONS
제품 사양
- Contact Material
- Silver Alloy
- Contact Resistance
- 100mΩ Max.
- Pull-in Time
- 30msec. Max. （DC type without diode）
- Release time
- 30msec. Max. （DC type without diode）
- Insulation resistance
- 1,000MΩ Min.(DC500V)
- Medium withstand voltage
- Between contact and contact: AC2,000V，50/60Hz 1min.
- Anti-vibration
- durable · 10~55Hz，Double amplitude 1.5 mm
- Malfunction
- 10~55Hz，Double amplitude 1.5 mm
- Impact resistance
- durable · 100G Min.
- Malfunction
- 10G Min.
- Life
- Mechanical life（10800 times per hour ，at room temperature） · 1,000,000次
- Electrical life （360 times per hour ，at room temperature）
- 30,000 times
- Ambient temperature
- -40℃~+85℃（Non-condensing）
- Weight
- about 130g
