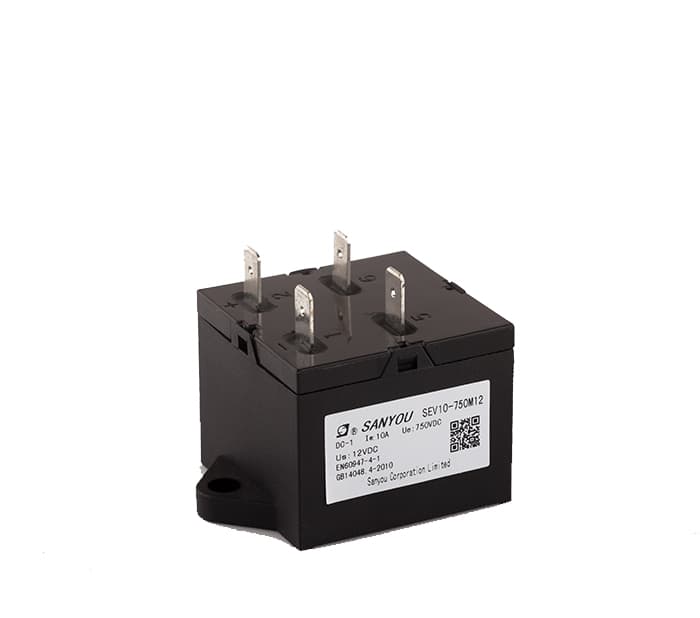

High voltage dc relay SEV10 series
영문 · PDF · 545 KB
HIGH VOLTAGE DC RELAY
SEV10 시리즈 고전압 DC 릴레이
SEV10 series
Rated 10A contact switching capacity Meet the requirements for response to abnormal working conditions, capable of switching Porcelain brazing and sealing technology, no arc leakage, no fire, no explosion Ceramic brazed sealing structure is adopted, and the product meets IP42 protection level Load wiring has polarity requirement, coil drive has no polarity requirement Environmentally friendly products, fully compliant with RoHS requirements
SPECIFICATIONS
제품 사양
- Project
- Description
- Mechanical Durability
- 5×105 times
- Insulation Resistance
- 1000MΩ(500VDC)
- Medium withstand voltage
- Between contact · 3000VAC 1min. 10mA
- Contacts and coils
- 4000VAC 1min. 10mA
- Action time (under rated voltage)
- ≤30ms
- Release time (under rated voltage)
- ≤10ms
- Impulse
- Stability · 196m/s2（20G）
- Strength
- 490m/s2（50G）
- Vibration
- 10Hz~500Hz 49m/s2（5G）
- Working Temperature
- -40℃~85℃
- Working Humidity
- 5%~95% RH
- Weight
- about185g
- Length × width × height (mm)
- 66.8×44.5×36.85
