HIGH VOLTAGE DC RELAY
SEV300 시리즈 고전압 DC 릴레이

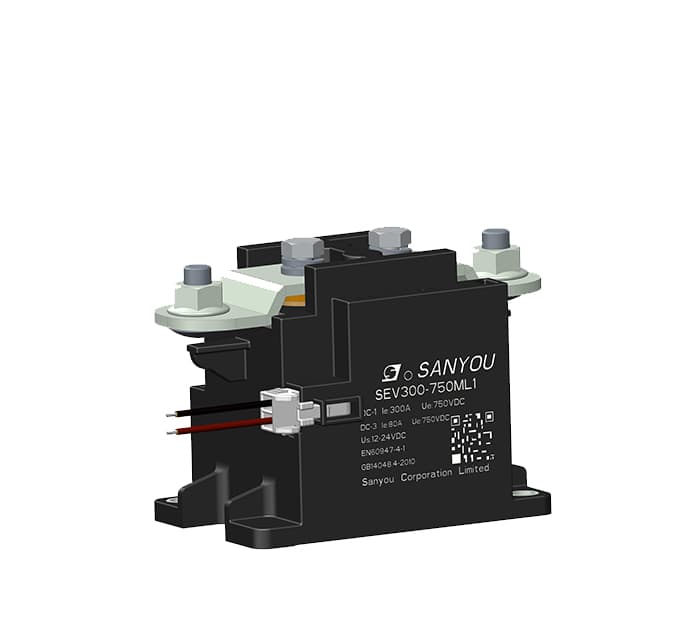

SEV300 series
Using ceramic body sealing structure and making sure the product meets the IP42 protection level; With a coil energy saver circuit, the relay's stable working power consumption is only 2.0W, and the coil input voltage can be in a wide voltage range of 12~24VDC; Shall meet the requirements for response to abnormal working conditions, capable of switching 10 times of overcurrent; Compliance with RoHS compliant.
SPECIFICATIONS
제품 사양
- Project
- Description
- Mechanical Durability
- 5×105 times
- Insulation Resistance
- 1000MΩ(500VDC)
- Medium withstand voltage
- Between contact · 3000VAC 1min 10mA
- Contacts and coils
- 4000VAC 1min 10mA
- Action time (under rated voltage)
- ≤50ms
- Release time (under rated voltage)
- ≤30ms
- Impulse
- Stability · 196m/s2（20G）
- Strength
- 490m/s2（50G）
- Vibration
- 10Hz~500Hz 49m/s2（5G）
- Working Temperature
- -40℃~85℃
- Working Humidity
- 5%~95% RH
- Weight
- 730g
- Length × width × height (mm)
- 113.5×65×75.5
