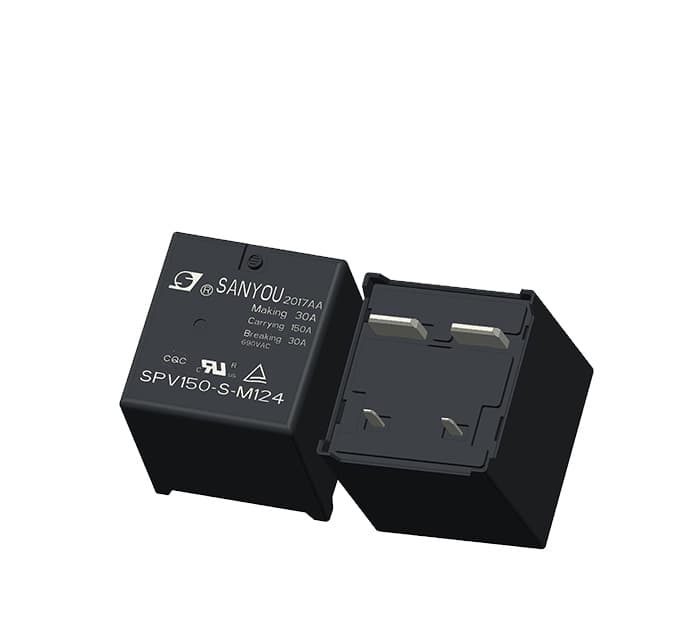

HIGH VOLTAGE DC RELAY
SPV150-series 시리즈 고전압 DC 릴레이
SPV150-series
High contact capacity: 150A contact switching capability. The coil holding voltage can be reduced to 50~55%V of the coil rated voltage to save energy. A set of normally open contacts, with a contact spacing >3.0mm. Comply with European photovoltaic standard IEC62109, VDE0126.
SPECIFICATIONS
제품 사양
- Contact Material
- Silver Alloy
- Contact Resistance
- 50mv/at 10A (max) Voltage Drop Method.
- Pull-in Time
- 30msec. Max.
- Release Time
- 10msec. Max
- Insulation resistance
- 1,000MΩ Min.(DC500V)
- Medium withstand voltage
- Between contact and contact：AC2,000V，50/60Hz 1min.
- Anti-vibration
- durable · 10~55Hz，Double amplitude1.5 mm
- Malfunction
- 10~55Hz，Double amplitude1.5 mm
- Impact resistance
- durable · 100G Min.
- Malfunction
- 10G Min.
- Life
- Mechanical life (9000 times per hour) · 1,000,000 times
- Ambient temperature
- -40℃~+85℃（Non-condensing）
- Weight
- about 155g
