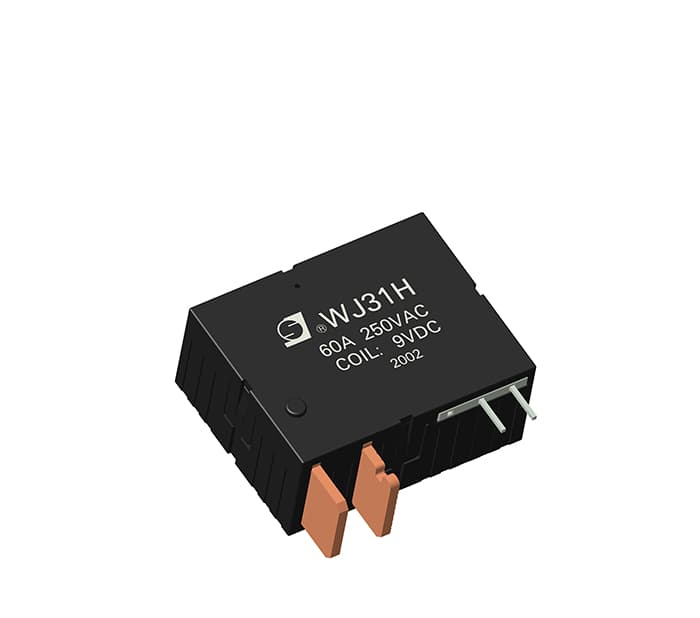

Magnetic latching relay WJ31H series
영문 · PDF · 1.2 MB
MAGNETIC LATCHING RELAY
WJ31H 시리즈 래칭 릴레이
WJ31H series
60A contact switching capacity Double contact structure Low power consumption, pulse drive Strong impact resistance, high reliability Withstand voltage between contact and coil 4KV Available for single coil and double coil Environmentally friendly products (in accordance with Ro HS) Comply with IEC 62055-31 UC 3 clause External Dimensions： 38 mm×30 mm×16.5mm
SPECIFICATIONS
제품 사양
- Contact Material
- Silver Alloy
- Contact Resistance
- 1mΩ Max.
- Pull-in Time
- 20ms Max.
- Release Time
- 20ms Max.
- Insulation resistance
- 1,000MΩ Min.(DC500V)
- Medium withstand voltage
- Medium withstand voltage：AC2,000V，50/60Hz 1min.
- Creepage distance
- 8mm
- Anti-vibration
- 10~55Hz，Double amplitude 1.5 mm
- Impact resistance
- durable · 100G Min.
- Malfunction
- 10G Min.
- Life
- Mechanical life (1800 times per hour) · 100,000
- Electrical life(120 times per hour)
- 10,000 times
- Ambient temperature
- -40℃~+85℃
- Humidity
- 5%～85%RH
