MAGNETIC LATCHING RELAY

WJ31J 시리즈 래칭 릴레이

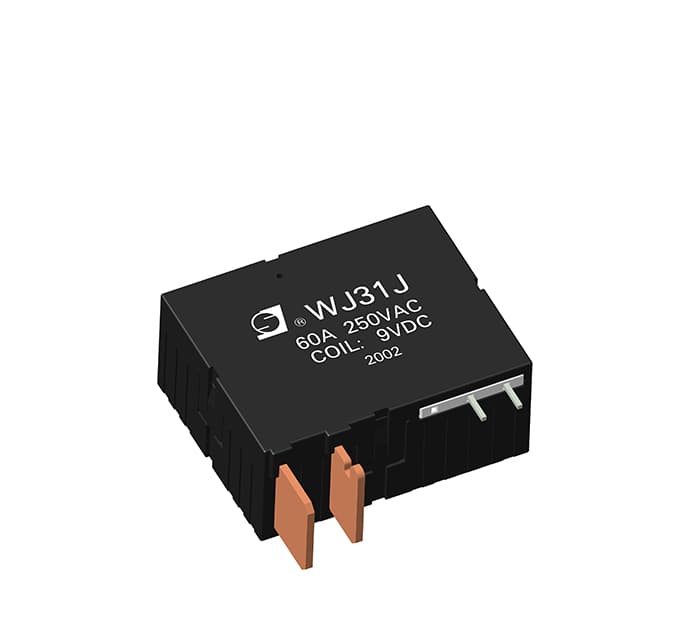

WJ31J series

60A contact switching capacity Low power consumption, pulse drive Strong impact resistance, high reliability Withstand voltage between contact and coil 4KV Available for single coil and double coil Environmentally friendly products (in accordance with Ro HS) External Dimensions： 37.5mm× 30mm× 16.5mm

이 제품 문의 영문 제품 정보

SPECIFICATIONS

제품 사양

Contact Material: Silver Alloy
Contact Resistance: 2mΩ Max.
Pull-in Time: 20ms Max.
Release Time: 20ms Max.
Insulation resistance: 1,000MΩ Min.(DC500V)
Medium withstand voltage: Between contact and contact：AC2,000V，50/60Hz 1min.
Creepage distance: 8mm
Anti-vibration: 10~55Hz，Double amplitude 1.5 mm
Impact resistance: durable · 100G Min.
Malfunction: 10G Min.
Life: Mechanical life(1800 times per hour) · 100,000
Electrical life(120 times per hour): 10,000times
Ambient temperature: -40℃~+85℃
Humidity: 5%～85%RH
